Nissan Leaf battery · First generation

Nissan Leaf 24 kWh battery packs

3 Leaf 24 kWh packs for sale now.

  • Payment held until the pack arrives
  • 7–14 day inspection
  • Collection arranged

Buying 5 or more?

3 Leaf 24 kWh packs for sale

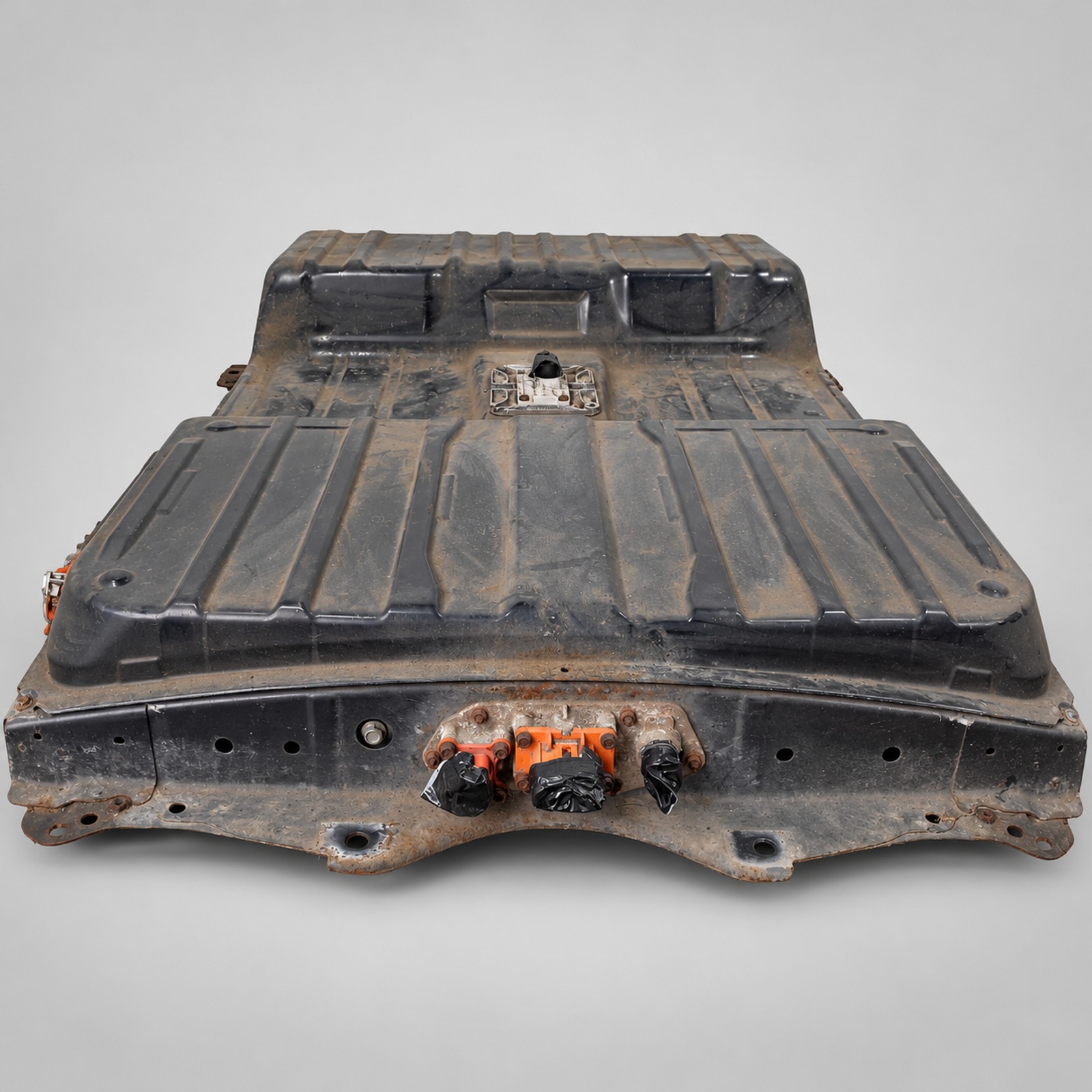

Nissan Leaf Acenta 24kWh
Pack

Nissan Leaf Acenta 24kWh

Nissan · 2015

Capacity
24kWh
Chemistry
LMO
Condition
Great
£563per unit · £23/kWh

1 available · United Kingdom

View & buy
Nissan Leaf Tekna 24kWh
Pack

Nissan Leaf Tekna 24kWh

Nissan · 2017

Capacity
24kWh
Chemistry
LMO
Condition
Great
£667per unit · £28/kWh

1 available · United Kingdom

View & buy
Nissan Leaf Tekna 24kWh
Pack

Nissan Leaf Tekna 24kWh

Nissan · 2016

Capacity
24kWh
Chemistry
LMO
Condition
Great
£667per unit · £28/kWh

1 available · United Kingdom

View & buy
Need it fitted? Find an EV garage listed for Nissan cars.Find an EV repair shop

Can't find the right pack?

Tell us the size. We'll find it.

Buying 5 or more Leaf 24 kWh packs?

We manage the trade: matching packs, one contact, collection arranged.

Nissan Leaf 24 kWh battery facts

The 24 kWh Nissan Leaf battery has 192 AESC lithium manganese oxide (LMO) pouch cells in 48 four-cell modules, wired 96s2p, with passive cooling.

Capacity
24 kWh
Cells
192 AESC pouch cells, 96s2p
Modules
48 (4 cells each)
Chemistry
LMO
Voltage
360 V nominal (2013 pack)
Weight
294 kg (2011 pack)
Cooling
Passive, no liquid

Part numbers

  • 295B0-3NA0A
  • 295B0-3NA8A
  • 295B0-3NF2A
  • 295B0-9RB9A

From our catalogue, still being checked. Match the number on the pack's label.

Documents

Safety data sheet and UN38.3 test summary for this pack, on request.

Each fact is confirmed by two independent sources. Facts we could not confirm twice are left out. Checked .

Sources

  1. Nissan USA, 2013 LEAF press kit
  2. Nissan USA, 2011 LEAF First Responder's Guide
  3. Nissan USA, 2013 LEAF First Responder's Guide
  4. US Department of Energy and Idaho National Laboratory, 2011 Leaf battery test results
  5. Idaho National Laboratory, 2013 Leaf battery pack test results
  6. Hathaway et al., University of Birmingham and Faraday Institution (2023)
  7. PushEVs, 2018 Nissan Leaf battery real specs (2018)
  8. Green Car Reports, 2018 Nissan Leaf battery technology, a deep dive (2018)
  9. InsideEVs, Nissan LEAF 40 kWh battery deep dive (2018)

Questions

How many cells are in a 24 kWh Leaf battery?

192 AESC pouch cells in 48 modules of four, wired 96s2p.

Does the 24 kWh Leaf battery have liquid cooling?

No. It is passively cooled, so heat and age set how fast it wears. Check the grade; trade accounts also see state of health.

How do I know a pack is the right one?

Match the part number on the pack label against the list above, or send it to us and we will check.

What if the pack is not as described?

You have 7–14 business days to inspect it. Raise it with evidence and the seller is not paid until it is resolved.

Selling Leaf 24 kWh packs? List once, get offers from garages and storage builders.

Sell batteries
