Toyota Prius NiMH hybrid batteries (gen 2, gen 3 and gen 4)

2 packs for sale now. Compare health and price per kWh, then buy with payment held until the pack arrives.

A Prius hybrid, not the Plug-in, from 2004 to 2022 and sold in the UK or EU: the battery is nickel-metal hydride, 201.6 V, 28 modules. Check the generation, as no source confirms the packs are interchangeable between generations.

Buying 5 or more?Get a bulk quote — matching packs, one contact, collection arranged.
  • Payment held until the pack arrives
  • 7–14 day inspection window
  • Collection arranged for you

NiMH Prius packs for sale (2)

Need it fitted? Find an EV garage listed for Toyota cars.EV repair shops

Can't find the right pack?

Tell us the size. We'll find it.

Request a battery

Reference

Toyota Prius NiMH hybrid battery battery facts

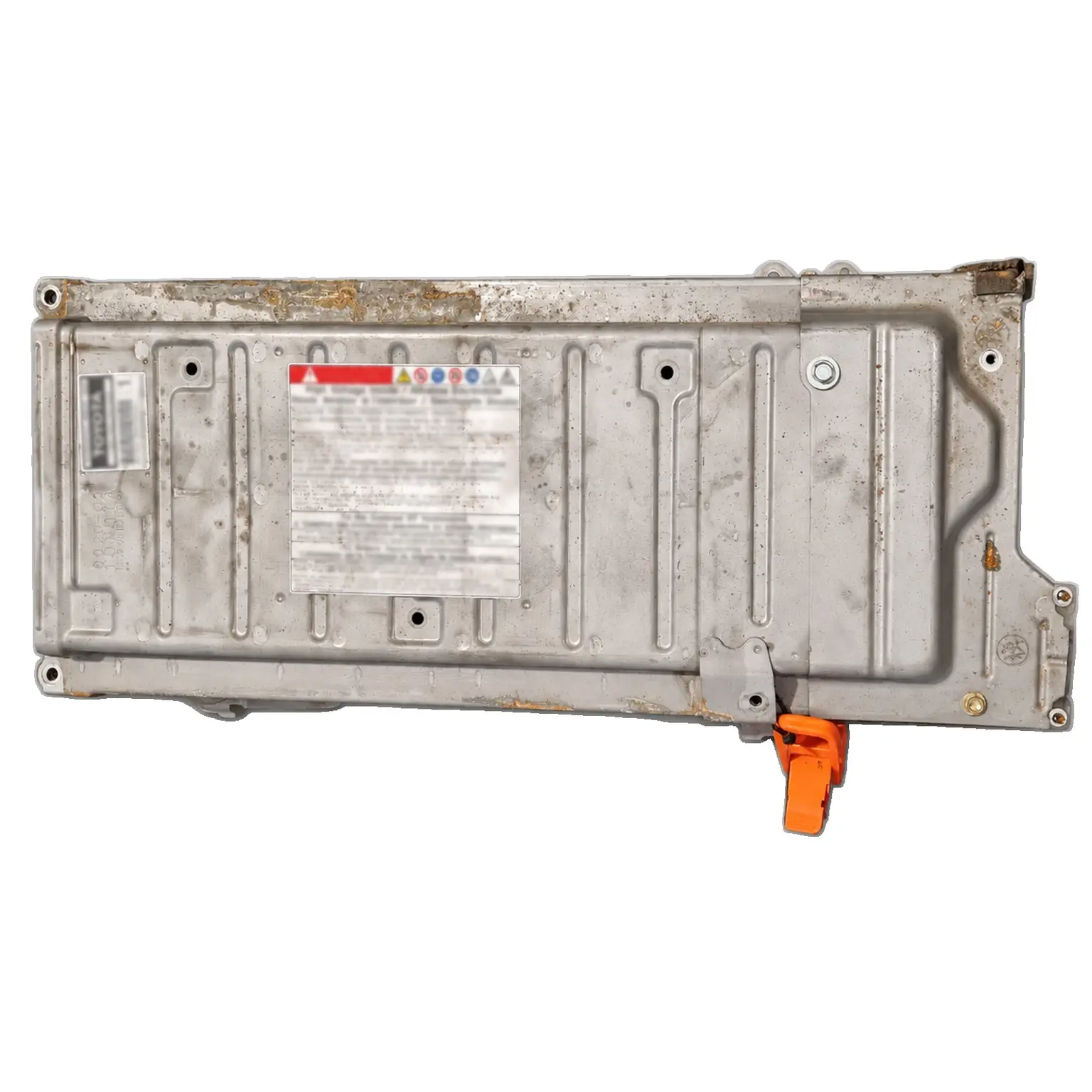

The Toyota Prius NiMH battery is the 201.6 V, 28-module nickel-metal hydride pack of the Prius gen 2, gen 3 and UK and EU gen 4, about 1.3 kWh. This page covers three generations; no source confirms their packs are interchangeable.

Chemistry
Nickel-metal hydride (NiMH)
Voltage
201.6 V
Modules
28 modules
Capacity
About 1.3 kWh
Cooling
Gen 3: air, by a fan
Location
Gen 2 and gen 3: behind the rear seat, in the cargo area. Gen 4: under the rear seat
Cars
Prius gen 2 (2004 to 2009), gen 3 (2009 to 2015) and UK and EU gen 4 (2016 to 2022)

Note: This page covers the NiMH packs of three Prius generations. They share the published voltage and module count, but no source confirms the packs are interchangeable between generations. Check the label.

Note: Sources disagree on the capacity: most give about 1.3 kWh, but ADAC lists the gen 3 at 1.0 kWh, and Green Car Reports gives 1.2 kWh for the US gen 4 NiMH pack.

Note: In the US, most gen 4 grades had a lithium-ion pack instead. UK and EU gen 4 cars have the NiMH pack.

Built into

  • Toyota Prius gen 2 (2004 to 2009)
  • Toyota Prius gen 3 (2009 to 2015)
  • Toyota Prius gen 4, UK and EU (2016 to 2022)

Documents

Safety data sheet and UN38.3 test summary for this pack, on request.

Ask for documents

Each fact is confirmed by two independent sources: Toyota spec sheets, press packs and manuals (one source), plus the US Oak Ridge and Idaho National Laboratories, ADAC, Autocar and Green Car Reports. Facts we could not confirm twice are left out. Checked . Sources

Questions

Buying a used Prius NiMH pack

Still unsure which pack is right? A specialist can check fitment with you.

Talk to a specialist

Not confirmed. Gen 2, gen 3 and UK and EU gen 4 cars all have a 201.6 V NiMH pack of 28 modules, but no source confirms the packs are interchangeable between generations, and the gen 4 pack sits in a different place. Check the generation and the label.
